Features

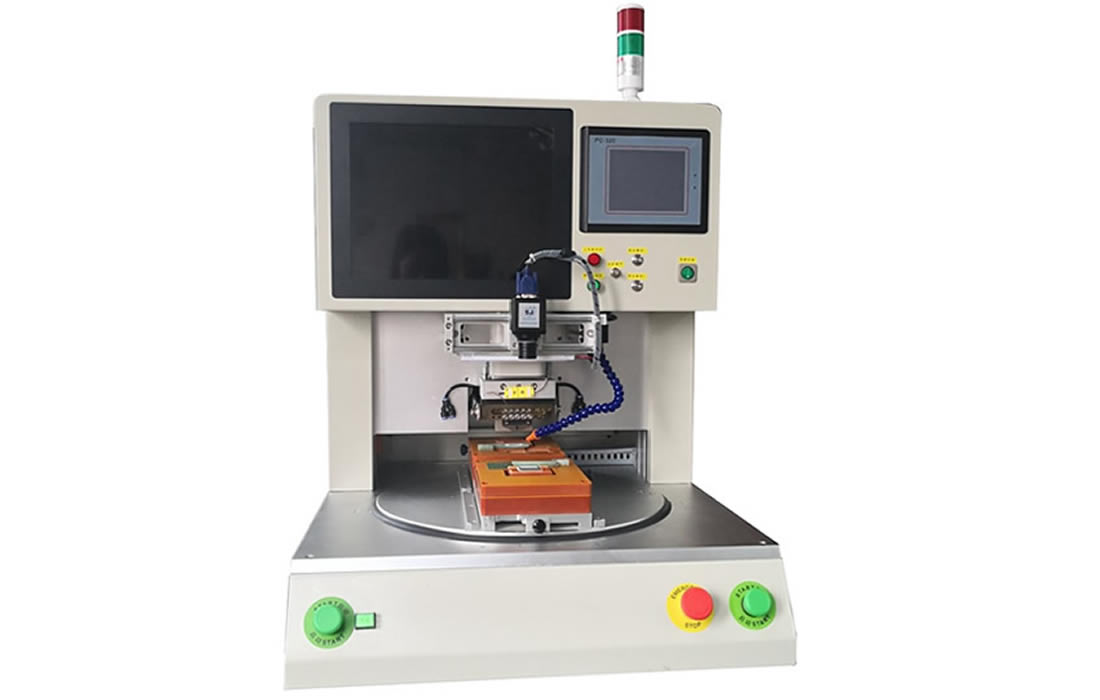

HBS-2AM Hot Bar Soldering Machine use thermode technology that based on repid reflow by pluse heating to effectively solder flexible board on the PCB. Real time display on the touch screen. Can use CCD+displayer can accurate positioning and soldering quality check. The Z axis is controlled by a stepper motor and can be preset to soldeing pressure. Rotating double soldering stations with high soldering efficiency.

Rotating disc Hot Bar Soldering Machine HBS-2AM Features:

● For different products, heating speed can be adjusted.

● With vacuum suction function, it is easier to adjust the fixture.

● Microcomputer control, accurate and stable.

● Programmable curve including preheat and reflow soldering temperatures.

● Suitable for high density TAB, TCP pressing and FPC, FFC and PCB soldering.

● Adopt precise PID control, phase Angle replace pulse drive.

● Small vibration, low noise, no fluctuation of voltage.

● Real time display temperature curve and temperature data.

● Touch screen input data, simplify operation.

● Rotating platform with precision motor control, accurate and stable.

● In the software with digital pressure meter, can be preset pressure range. The Z axis use precise step motor. Position adjustment is very convenient.

● With pressure detection function, it automatically detects and adjusts the pressure to solve the problem of uneven force. We will replace the Z axis with a servo motor.(Option)
